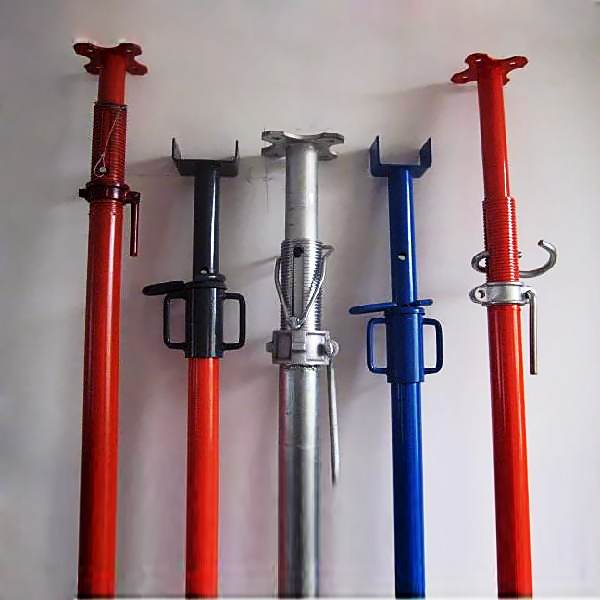

Adjustable Formwork Construction Scaffolding Support/Shoring Steel Prop
| Material: |
Steel |
| Type: |
Spanish Type, Italian Type, Middle East Type |
| Supporting Mode: |
Projecting Scaffolding |
| Lapping Form: |
Single Row Scaffolding |
| Erection Position: |
Internal Scaffolding |
| Scaffolding Part Type: |
Scaffolding Props |
| Specification |
Steel Prop |
| Outer Diameter |
48mm--60mm; 40mm--48mm; |
| Pipe Thickness |
1.5mm--3mm |
| Length |
600mm--5000mm |
| Standard |
GB, ANSI, ASME, ASTM, JIS, DIN, BS, EN |
| Material |
Q195,Q235, Q345 |
| Package |

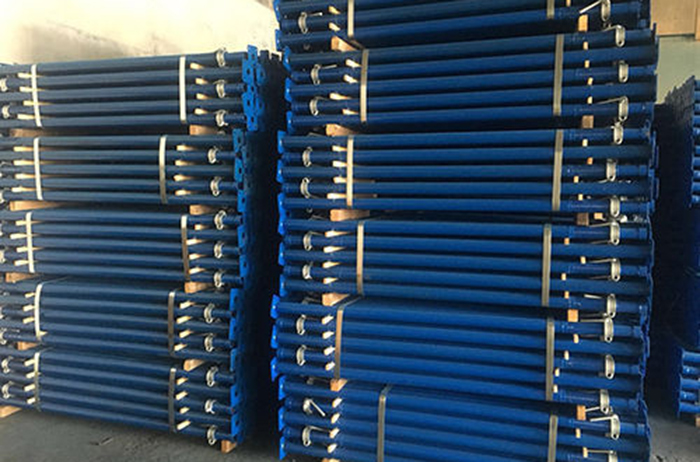

In pallets or in bundle or in bulk |
| Type |
heavy duty or light duty |
| Application |

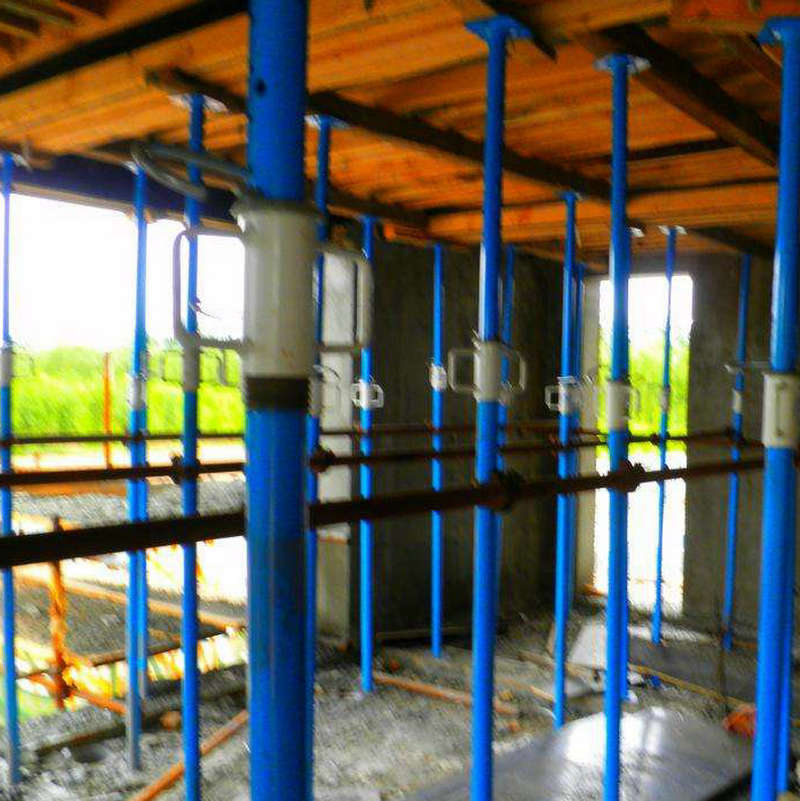

slab or formwork supporting |
| Surface Treatment |
painted,powder coated, electro galvanized or hot dip galvanized |
| Prodcuts |
specification |
Unit Weight |
Remark |
| Italian type props,painted |
0.5/0.8M |
4.14kg |
plate thickness:4mm,
outer tube:Φ56X1.6mm
inner tube:Φ48x1.8mm
hook Diameter:Φ14mm |
| 0.7/1.2M |
4.95kg |
| 0.9/1.6M |
6.05kg |
| 1.1/1.8M |
6.53kg |
| 1.6/2.9M |
8.5kg |
| 2.0/3.6M |
10kg |
| 2.2/3.8M |
11.16kg |
| 2.2/4.0M |
11.2kg |
| 2.5/4.5M |
12.4kg |
| 2.8/5.0M |
14.7kg |
